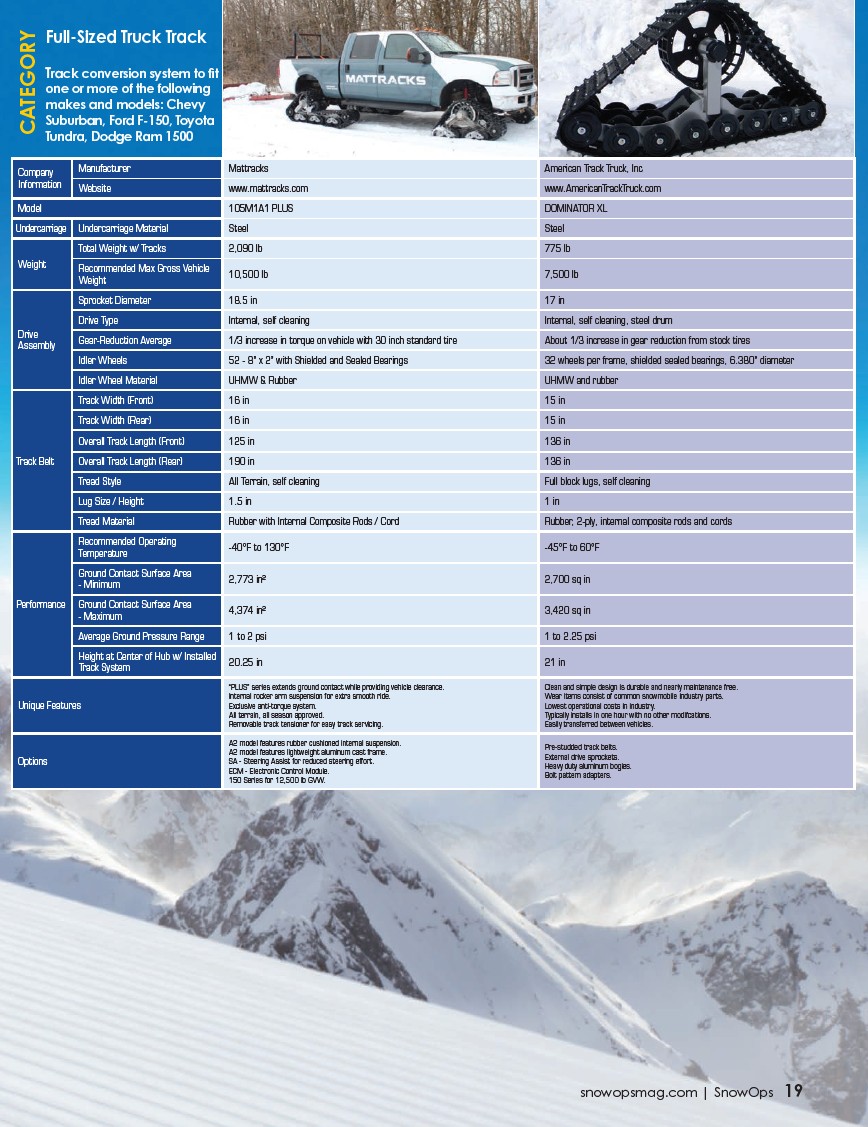

Full-Sized Truck Track
Track conversion system to fit
one or more of the following
makes and models: Chevy
Suburban, Ford F-150, Toyota
Tundra, Dodge Ram 1500
CATEGORY
Company
Information
Manufacturer Mattracks American Track Truck, Inc
Website www.mattracks.com www.AmericanTrackTruck.com
Model 105M1A1 PLUS DOMINATOR XL
Undercarriage Undercarriage Material Steel Steel
Weight
Total Weight w/ Tracks 2,090 lb 775 lb
Recommended Max Gross Vehicle
Weight 10,500 lb 7,500 lb
Drive
Assembly
Sprocket Diameter 18.5 in 17 in
Drive Type Internal, self cleaning Internal, self cleaning, steel drum
Gear-Reduction Average 1/3 increase in torque on vehicle with 30 inch standard tire About 1/3 increase in gear reduction from stock tires
Idler Wheels 52 - 8” x 2” with Shielded and Sealed Bearings 32 wheels per frame, shielded sealed bearings, 6.380” diameter
Idler Wheel Material UHMW & Rubber UHMW and rubber
Track Belt
Track Width (Front) 16 in 15 in
Track Width (Rear) 16 in 15 in
Overall Track Length (Front) 125 in 136 in
Overall Track Length (Rear) 190 in 136 in
Tread Style All Terrain, self cleaning Full block lugs, self cleaning
Lug Size / Height 1.5 in 1 in
Tread Material Rubber with Internal Composite Rods / Cord Rubber, 2-ply, internal composite rods and cords
Performance
Recommended Operating
Temperature -40°F to 130°F -45°F to 60°F
Ground Contact Surface Area
- Minimum 2,773 in² 2,700 sq in
Ground Contact Surface Area
- Maximum 4,374 in² 3,420 sq in
Average Ground Pressure Range 1 to 2 psi 1 to 2.25 psi
Height at Center of Hub w/ Installed
Track System 20.25 in 21 in
Unique Features
“PLUS” series extends ground contact while providing vehicle clearance.
Internal rocker arm suspension for extra smooth ride.
Exclusive anti-torque system.
All terrain, all season approved.
Removable track tensioner for easy track servicing.
Clean and simple design is durable and nearly maintenance free.
Wear items consist of common snowmobile industry parts.
Lowest operational costs in industry.
Typically installs in one hour with no other modifcations.
Easily transferred between vehicles.
Options
A2 model features rubber cushioned internal suspension.
A2 model features lightweight aluminum cast frame.
SA - Steering Assist for reduced steering effort.
ECM - Electronic Control Module.
150 Series for 12,500 lb GVW.
Pre-studded track belts.
External drive sprockets.
Heavy duty aluminum bogies.
Bolt pattern adapters.
