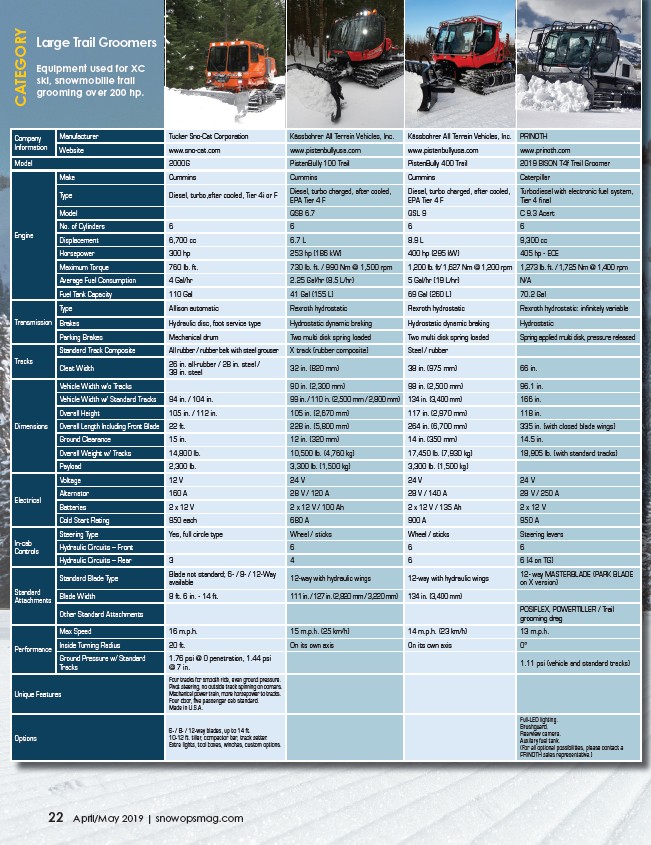

CATEGORY 22 April/May 2019 | snowopsmag.com
Company
Information
Manufacturer Tucker Sno-Cat Corporation Kässbohrer All Terrain Vehicles, Inc. Kässbohrer All Terrain Vehicles, Inc. PRINOTH
Website www.sno-cat.com www.pistenbullyusa.com www.pistenbullyusa.com www.prinoth.com
Model 2000G PistenBully 100 Trail PistenBully 400 Trail 2019 BISON T4f Trail Groomer
Engine
Make Cummins Cummins Cummins Caterpillar
Type Diesel, turbo,after cooled, Tier 4i or F Diesel, turbo charged, after cooled,
EPA Tier 4 F
Diesel, turbo charged, after cooled,
EPA Tier 4 F
Turbodiesel with electronic fuel system,
Tier 4 final
Model QSB 6.7 QSL 9 C 9.3 Acert
No. of Cylinders 6 6 6 6
Displacement 6,700 cc 6.7 L 8.9 L 9,300 cc
Horsepower 300 hp 253 hp (186 kW) 400 hp (295 kW) 405 hp - ECE
Maximum Torque 760 lb. ft. 730 lb. ft. / 990 Nm @ 1,500 rpm 1,200 lb. ft/ 1,627 Nm @ 1,200 rpm 1,273 lb. ft. / 1,725 Nm @ 1,400 rpm
Average Fuel Consumption 4 Gal/hr 2.25 Gal/hr (8.5 L/hr) 5 Gal/hr (19 L/hr) N/A
Fuel Tank Capacity 110 Gal 41 Gal (155 L) 69 Gal (260 L) 70.2 Gal
Transmission
Type Allison automatic Rexroth hydrostatic Rexroth hydrostatic Rexroth hydrostatic: infinitely variable
Brakes Hydraulic disc, foot service type Hydrostatic dynamic braking Hydrostatic dynamic braking Hydrostatic
Parking Brakes Mechanical drum Two multi disk spring loaded Two multi disk spring loaded Spring applied multi disk, pressure released
Tracks
Standard Track Composite All rubber / rubber belt with steel grouser X track (rubber composite) Steel / rubber
Cleat Width 26 in. all-rubber / 28 in. steel /
38 in. steel 32 in. (820 mm) 38 in. (975 mm) 66 in.
Dimensions
Vehicle Width w/o Tracks 90 in. (2,300 mm) 98 in. (2,500 mm) 96.1 in.
Vehicle Width w/ Standard Tracks 94 in. / 104 in. 99 in. / 110 in. (2,500 mm / 2,800 mm) 134 in. (3,400 mm) 166 in.
Overall Height 105 in. / 112 in. 105 in. (2,670 mm) 117 in. (2,970 mm) 118 in.
Overall Length Including Front Blade 22 ft. 228 in. (5,800 mm) 264 in. (6,700 mm) 335 in. (with closed blade wings)
Ground Clearance 15 in. 12 in. (320 mm) 14 in. (350 mm) 14.5 in.
Overall Weight w/ Tracks 14,800 lb. 10,500 lb. (4,760 kg) 17,450 lb. (7,930 kg) 18,905 lb. (with standard tracks)
Payload 2,300 lb. 3,300 lb. (1,500 kg) 3,300 lb. (1,500 kg)
Electrical
Voltage 12 V 24 V 24 V 24 V
Alternator 160 A 28 V / 120 A 28 V / 140 A 28 V / 250 A
Batteries 2 x 12 V 2 x 12 V / 100 Ah 2 x 12 V / 135 Ah 2 x 12 V
Cold Start Rating 950 each 680 A 900 A 950 A
In-cab
Controls
Steering Type Yes, full circle type Wheel / sticks Wheel / sticks Steering levers
Hydraulic Circuits – Front 6 6 6
Hydraulic Circuits – Rear 3 4 6 6 (4 on TG)
Standard
Attachments
Standard Blade Type Blade not standard; 6- / 8- / 12-Way
available 12-way with hydraulic wings 12-way with hydraulic wings 12- way MASTERBLADE (PARK BLADE
on X version)
Blade Width 8 ft. 6 in. - 14 ft. 111 in. / 127 in. (2,820 mm / 3,220 mm) 134 in. (3,400 mm)
Other Standard Attachments POSIFLEX, POWERTILLER / Trail
grooming drag
Performance
Max Speed 16 m.p.h. 15 m.p.h. (25 km/h) 14 m.p.h. (23 km/h) 13 m.p.h.
Inside Turning Radius 20 ft. On its own axis On its own axis 0°
Ground Pressure w/ Standard
Tracks
1.76 psi @ 0 penetration, 1.44 psi
@ 7 in. 1.11 psi (vehicle and standard tracks)
Unique Features
Four tracks for smooth ride, even ground pressure.
Pivot steering, no outside track spinning on corners.
Mechanical power train, more horsepower to tracks.
Four door, five passenger cab standard.
Made in U.S.A.
Options
6- / 8- / 12-way blades, up to 14 ft.
10-12 ft. tiller, compactor bar, track setter.
Extra lights, tool boxes, winches, custom options.
Full-LED lighting.
Brushguard.
Rearview camera.
Auxilary fuel tank.
(For all optional possibilities, please contact a
PRINOTH sales representative.)
Large Trail Groomers
Equipment used for XC
ski, snowmobille trail
grooming over 200 hp.
